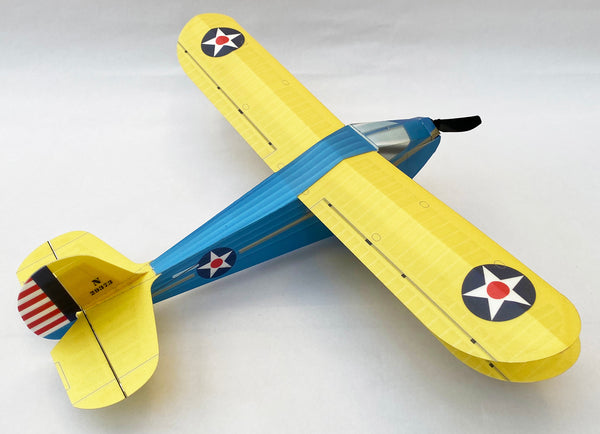

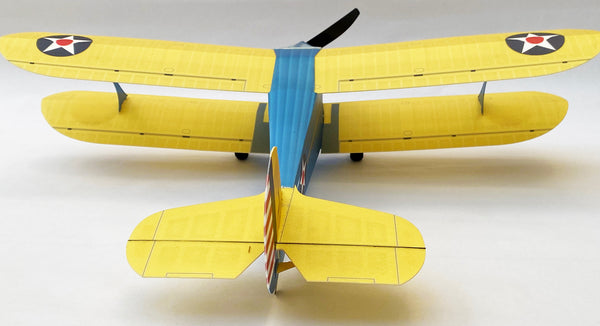

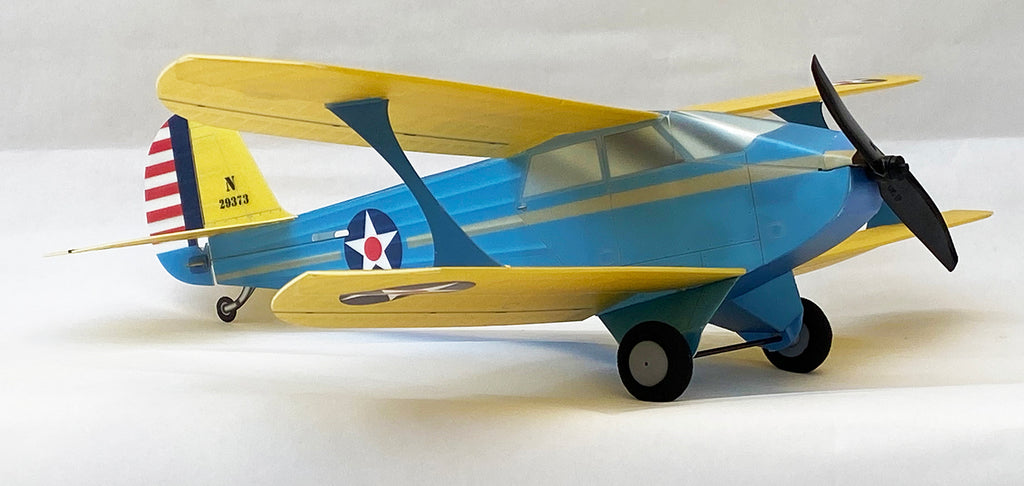

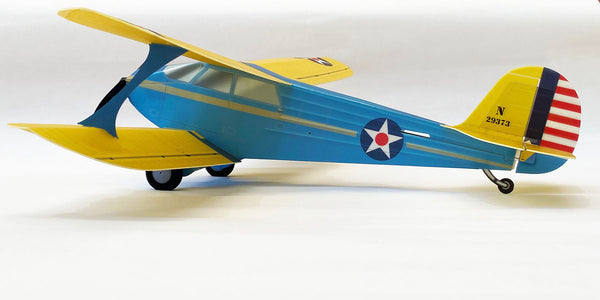

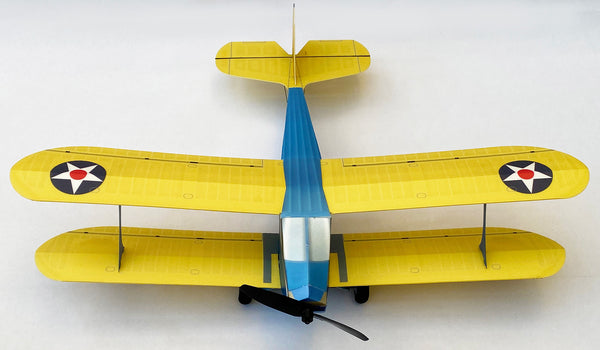

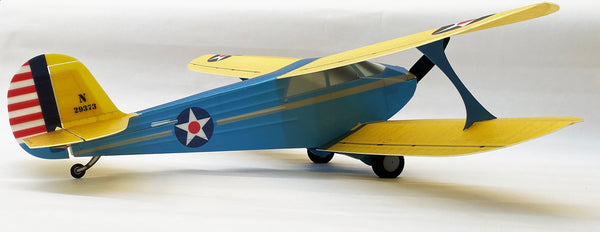

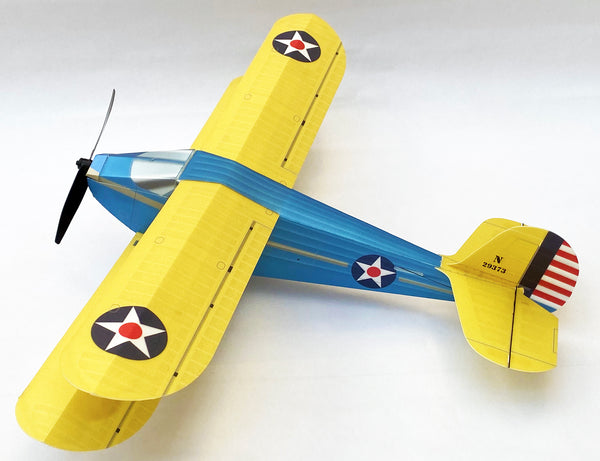

Scrappee STAGG 'USAAC' Micro Staggerwing Kit
Based on the staggered biplane wing layout of the Beechcraft Model 17, the Scrappee STAGG is an easy to build, stable flying model kit, with a performance suitable for light wind days or indoor flying in most sports halls.
With the lower wing position forward of the top wing, the model provides a very different flying experience than the standard Scrappee Trainer and Scrappee Biplane kits. It also looks amazing in the air.
This particular kit is decked out in the 1930s style livery of USAAC liaison aircraft. The colours are vibrant and easy to see, making identification and orientation in the air much easier.
NOTE: To get your Scrappee STAGG in the air you will need an RC transmitter (compatible with one of the 3 types of receiver available) plus a suitable battery and charger. Please feel free to CONTACT US if you need some guidance!
Selecting the right receiver to complete your kit:
The Microaces AIO 5CH micro receiver is available with the following protocols. If unsure, check your transmitter instruction manual to find out which protocol(s) it uses. Then select the compatible receiver protocol below to view the appropriate receiver to add to your order.
| DSM2/X Compat. | S-FHSS Compat. | FrSky D8 Compat. | FrSky D16 Compat. | AFHDS Compat. |
Floats with that?
Microaces has created a Tyvek Float kit for all Scrappee aircraft. It is designed to be interchangeable with the supplied wheelset so you can have the best of both worlds.
Click on the image below to find out more...
Supported Build
Scrappee STAGG kits come with a step by step printed Assembly Guide illustrating every detail of the build to ensure you succeed in producing a great looking and flying model.
Video
Assembly Guide
Click on the booklet to download!
Specification
Microaces Scrappee STAGG
| Airframe | Sport |
| Controls | Rudder, Elevator, Throttle |
| Length | 330mm / 13" |
| Wingspan | 427mm / 16.8" |
| Wing Area | 5.60 sq dm / 86.8 sq in. |
| Flying Weight. | 44 - 48g/1.5 - 1.7oz |
| Wing Load | ~8.2 g/sq.dm / 2.69 oz/sq.ft. |
| Rec. Receiver |
|
| Rec. Motor / G.Box* |
Microaces Motor Gearbox with STANDARD prop shaft |
| Rec. Prop* | GWS 4530 |
| Skill Level - Build | Beginner |
| Skill Level - Pilot | Beginner |
| Tools required | |
| Rec. Adhesive | Deluxe Materials Foam2Foam |
*Now included in the kit
Kit Content
| NOW INCLUDES | Brushed Motor/Gearbox with standard prop shaft |
| GWS 4530 Prop and rubber prop adapter | |
| SHEET PARTS | 2mm laser cut Depron Airframe sheet |
| 1mm printed & laser cut Depron fuselage sheet | |
| 1mm printed & laser cut Depron flight surfaces sheet x 2 | |
| 200 micron printed & laser cut polypropylene sheet | |
| polyester sticker sheet | |
| LOOSE PARTS | 0.8mm laser cut plywood motor mount |
| Two 30mm Ø Sponge rubber tires + 3D printed hub assembly | |
| Four 3mm & two 4mm Ø noedymium magnets | |
| 2mm Ø carbon fibre rod axle | |
| pre-shaped piano wire elevator & rudder control rods | |
