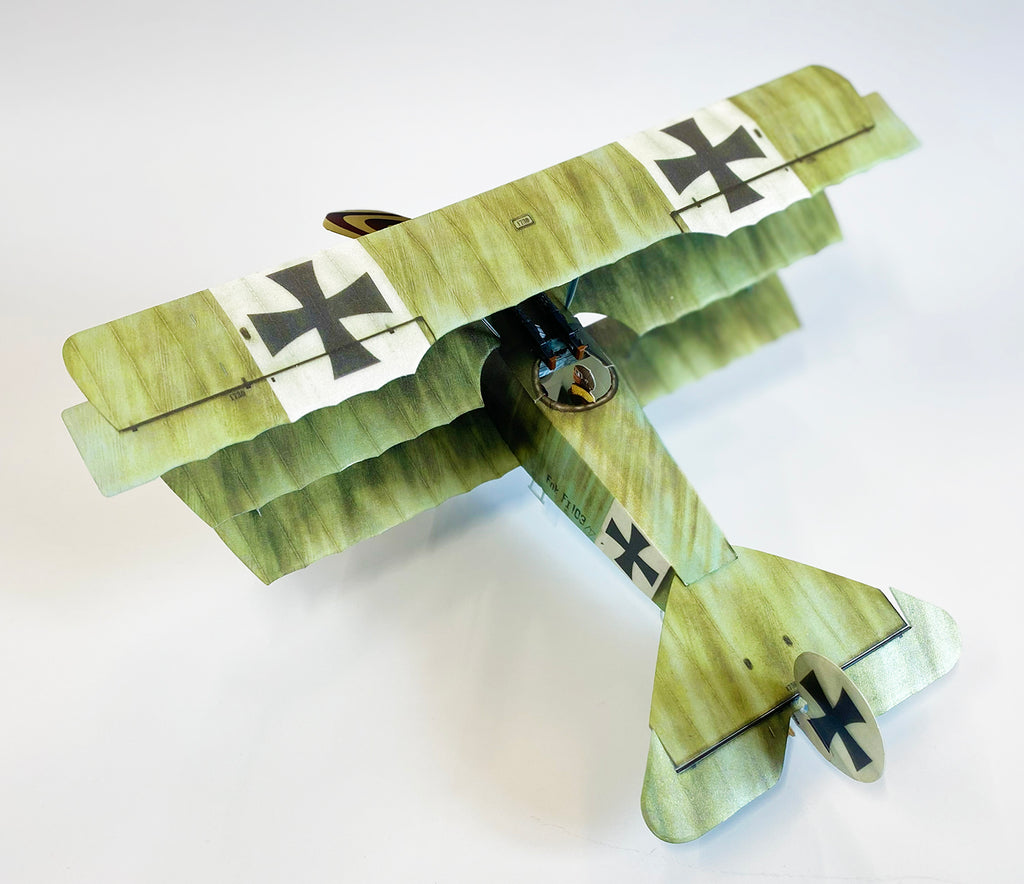

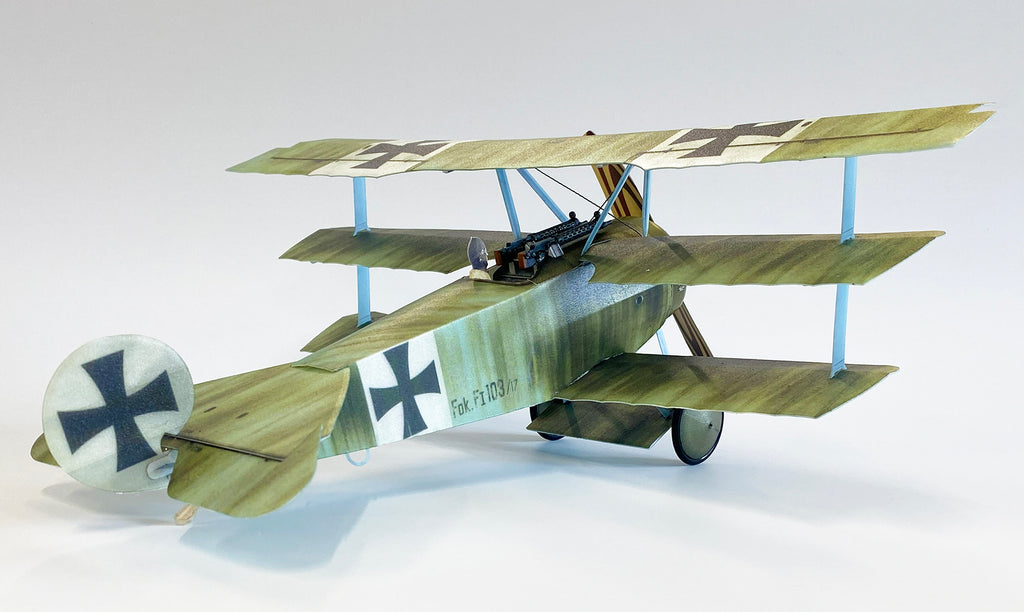

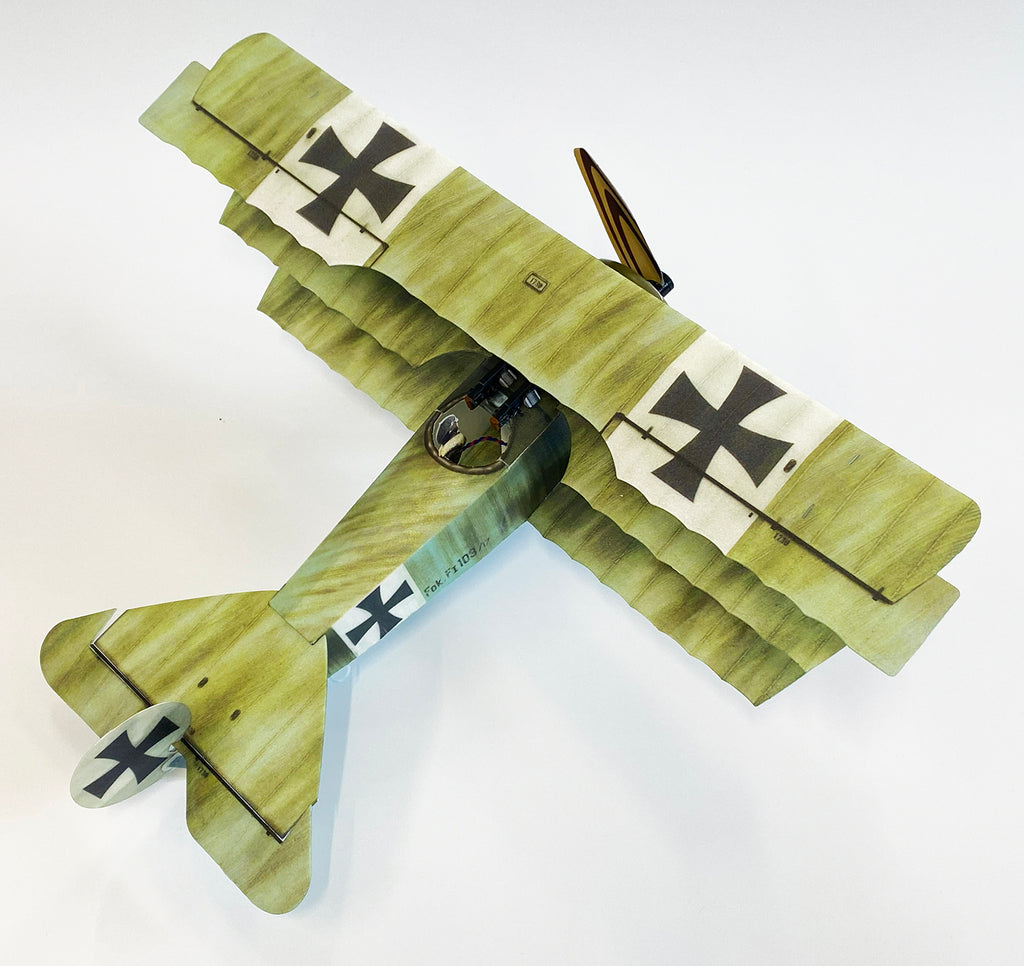

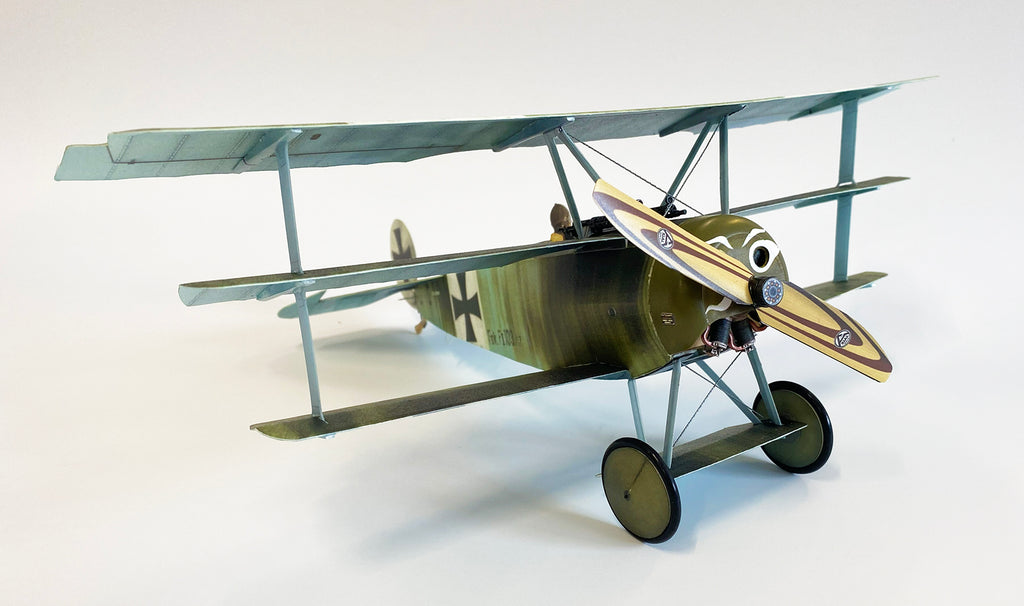

Fokker F.1 'Werner Voss' Kit
Flown by Werner Voss 1917
The Fokker F.1 (designated 103/17) was a prototype version of the iconic Fokker Dr.I. Only three F.1 aircraft were created, with two being sent to the front lines with the first batch of Dr.1s in July of 1917. Its debut was nothing short of spectactular with the likes of Werner Voss amassing 10 victories in 6 days, before he was shot down on the 23rd Sept 1917.
Find out more about that famous dogfight by clicking HERE
Making History

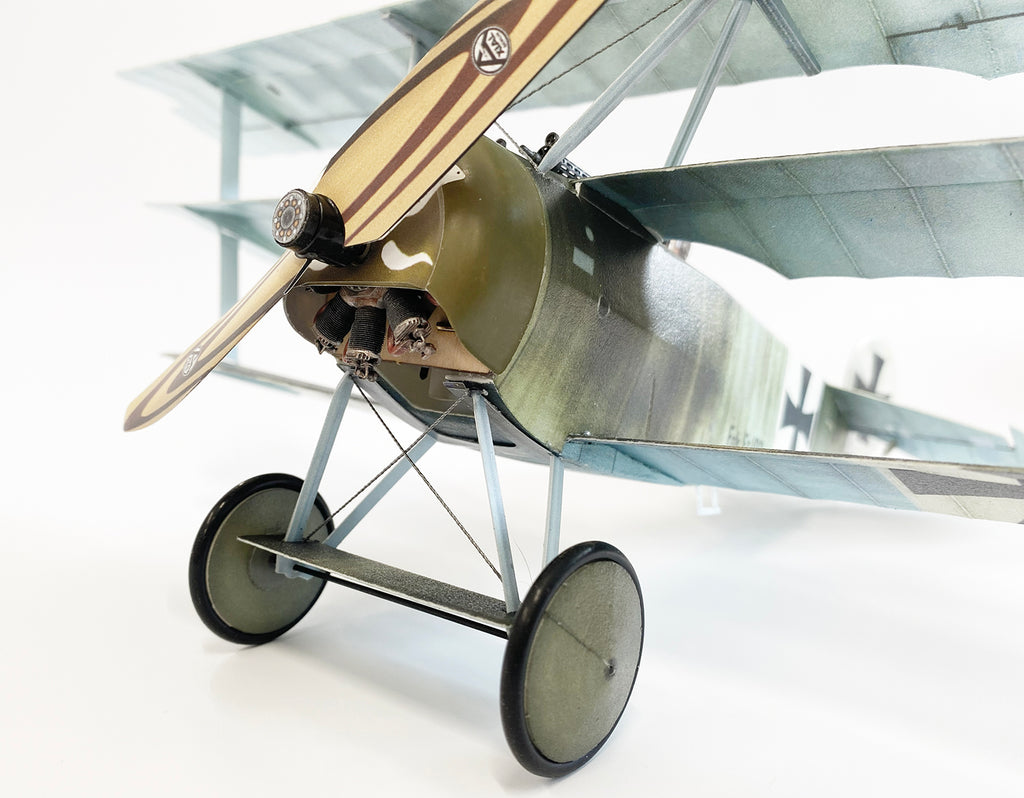

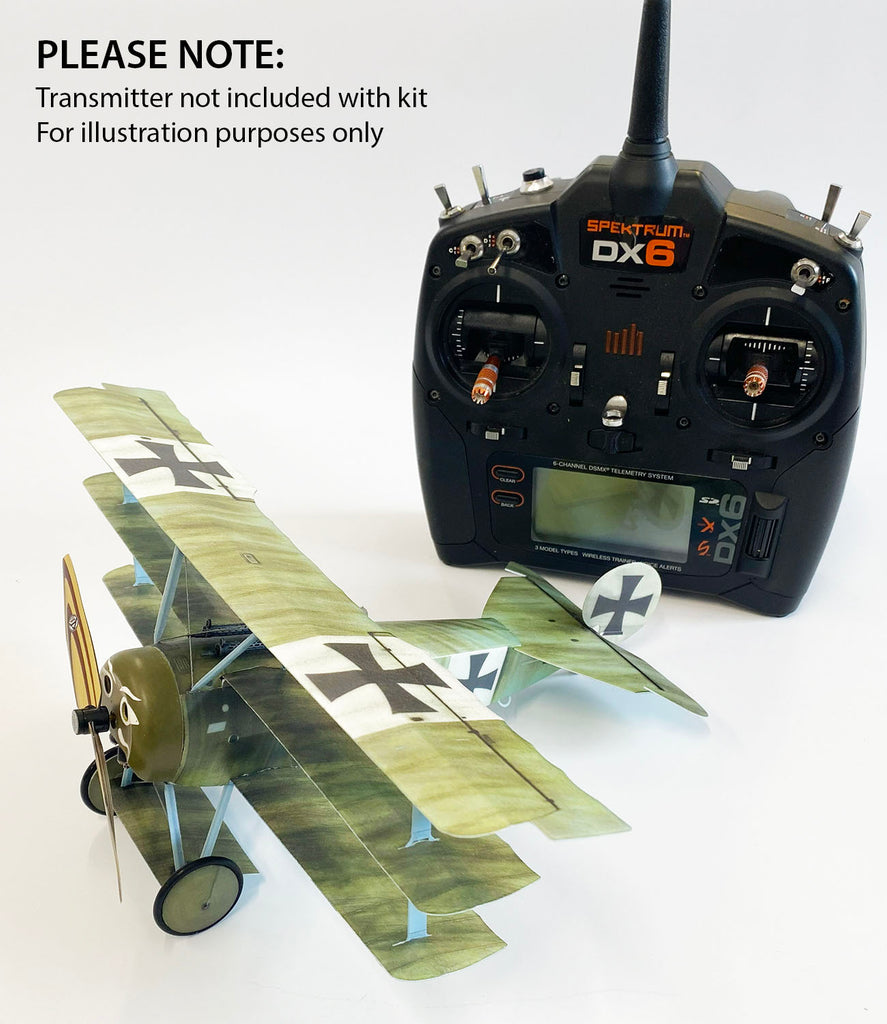

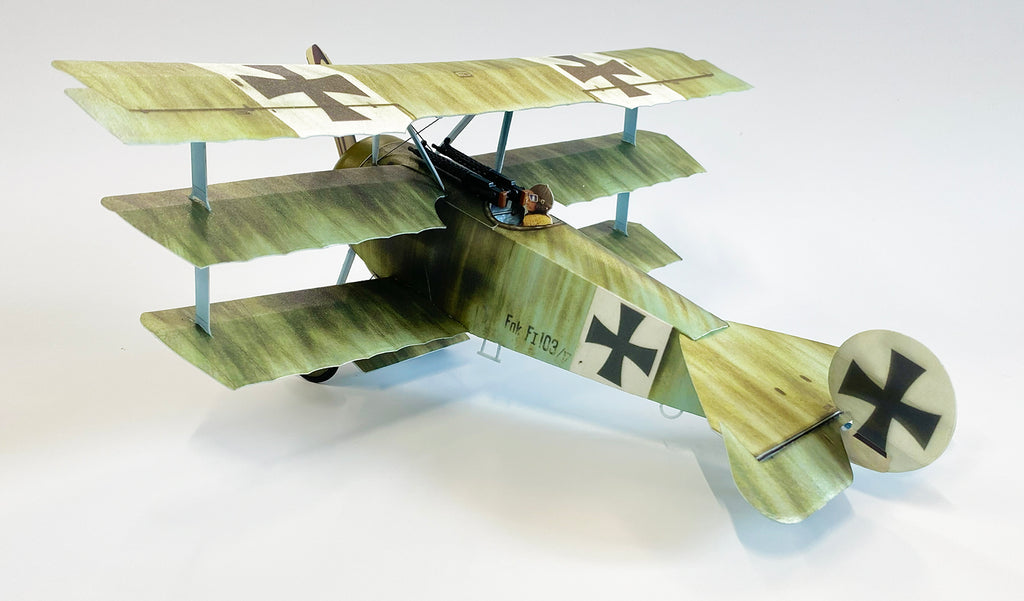

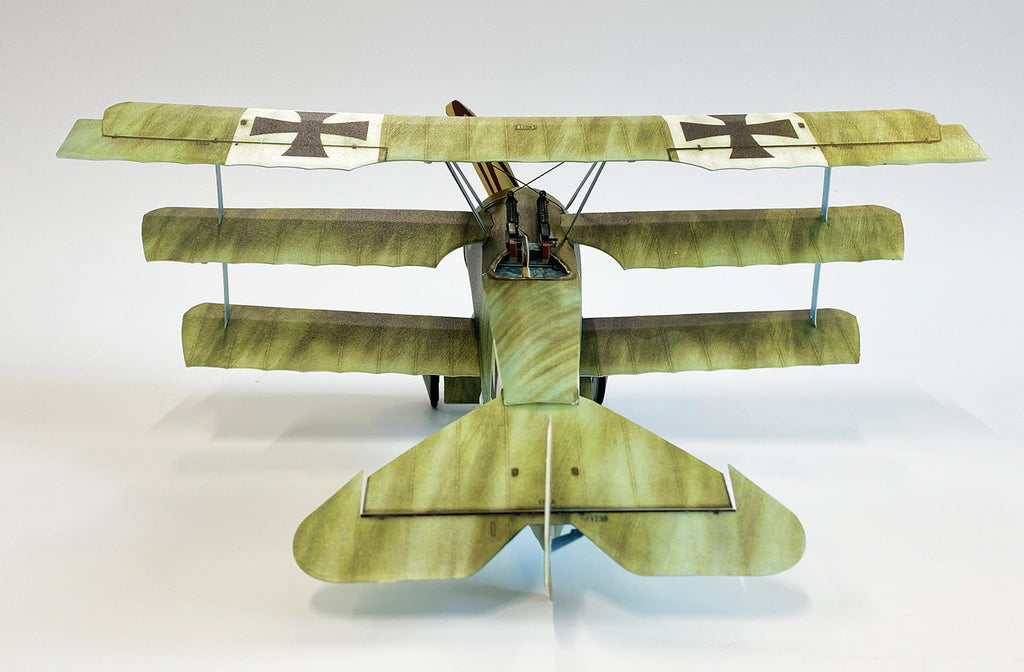

The Microaces F.1 kit reproduces this iconic aircraft to include details such as the moderately curved leading edge of the horizontal stabilizer and lack of lower wing skids. The kit also includes a vacuum formed plastic cowl, extensive laser cut light plywood parts and a replica Oberursel II rotary engine kit that actually spins with the prop!

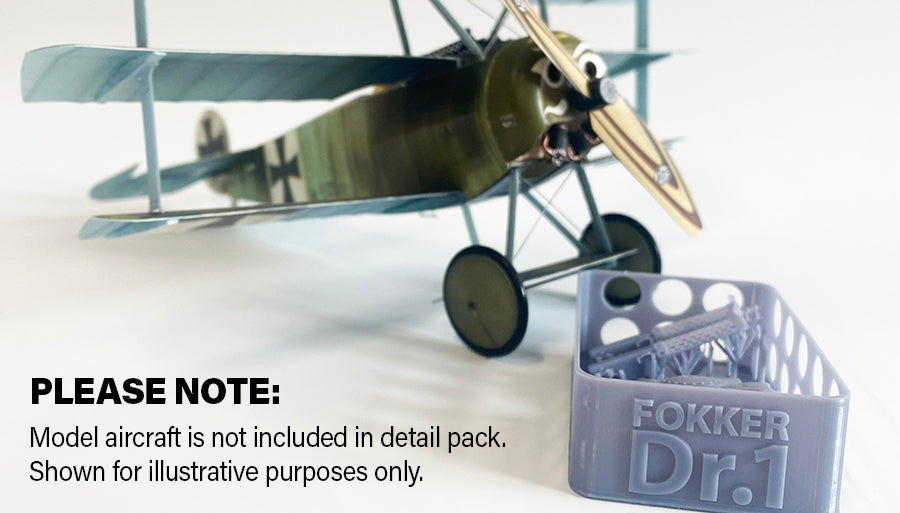

New Fokker Triplane 3D Printed Detail Pack for 2026
USE the code 'TRIPEDETAIL' at checkout to get 50% off the Fokker Triplane Detail Pack when purchased with ANY Fokker Dr1 Triplane kit* (*excludes airframe only kits)

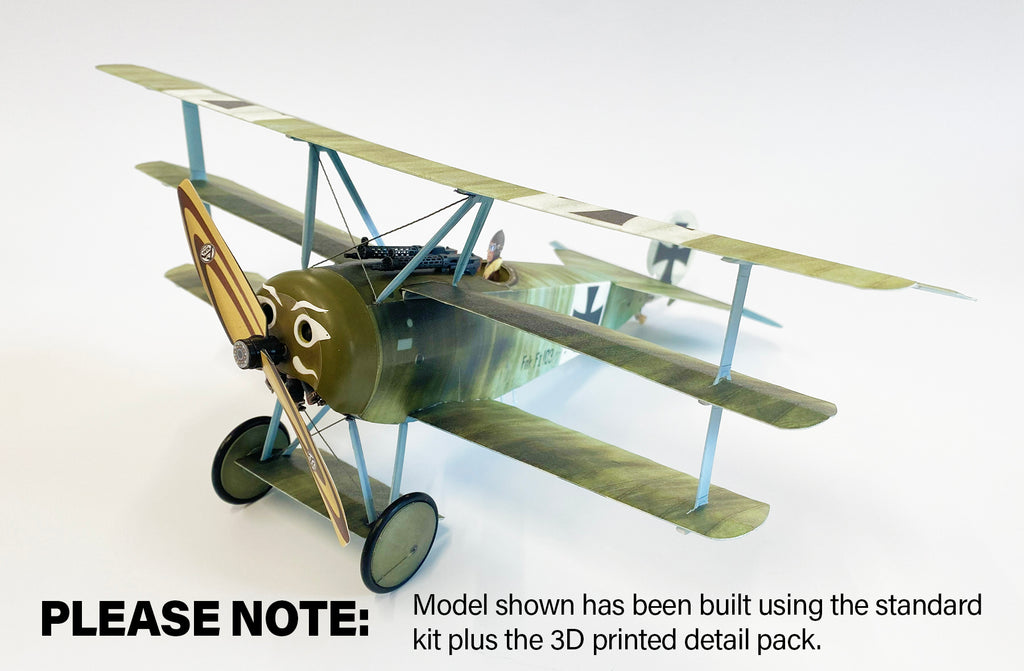

We have just released an impressive pack of 3D parts for the Microaces Fokker Triplane kit that takes the kit from a great looking micro RC model to a full blown scale display model....that can still fly as well as it always has.
All parts have been designed to be extremely light weight and are printed using a high impact resin for strength and durability.
Click HERE or on the banner below to view the Triplane Detail Pack and add to your order.
The Fokker Triplane 3D Printed Super Detail Pack includes:

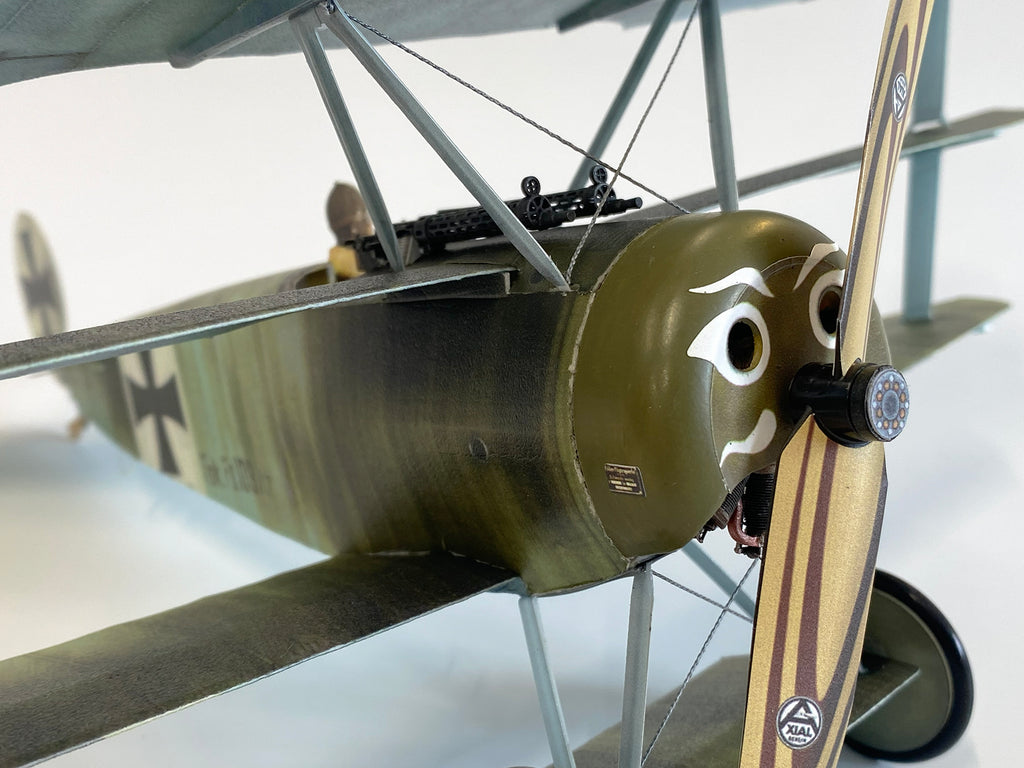

- Highly detailed Oberursel Ur.II nine-cylinder rotary engine
- Two Spandau LMG 08/15 machine guns
- New Plywood engine mount
- New Vac Formed Cowl replacement
- 4mm dia neodymium magnet
- Brass tube bearing for the rotary engine
The 3D printed rotary engine replica is designed to spin with the prop and in tests, the ballast required in the original model is substantially reduced to the point where we have not added any to the new F.1 model recently built. And it flies very well indeed.
Selecting the right receiver to complete your kit:
So to complete the kit for radio controlled flight, all you need is an All In One (AIO) Receiver that's compatible with your transmitter.
The Microaces AIO 5CH micro receiver is available with the following protocols. If unsure, check your transmitter instruction manual to find out which protocol(s) it uses. Then select the compatible receiver protocol below to view the appropriate receiver to add to your order.
| DSM2/X Compat. | S-FHSS Compat. | FrSky D8 Compat. | FrSky D16 Compat. | AFHDS 2A Compat. |
VIDEO
3D Printed Pilots
A fantastic enhancement to the kit, that really upgrades the level of realism is a 3 dimensional pilot. Add one to your order for the ultimate 'finishing touch'!
Specification
Fokker Dr.1
| Airframe | Scale |
| Controls | Rudder, Elevator, Throttle |
| Length | 245mm / 9.6" |
| Wingspan | 305mm / 12" |
| Wing Area | 3.32 sq dm / 51 sq in. |
| Flying Weight. | 32 - 34g/1.2 - 1.4oz |
| Wing Load | ~9.9 g/sq.dm / 3.0 oz/sq.ft. |
| Recommended Receiver |
(N.B. Tx mix or mode 4 required to use for rudder/aileron on same control stick) |
| Rec. Motor/G.Box* |
Microaces Motor Gearbox with LONG prop shaft |
| Rec. Prop* | GWS 4530 |
| Skill Level - Build | Intermediate |
| Skill Level - Pilot | Intermediate/Advanced |
| Tools required | Scalpel, 180 Grit sandpaper or stick, straight edge, tweezers |
| Rec. Adhesive | Foam2Foam / Foam safe CA / Aliphatic glue |
*Now included in Kit
Kit Content
| NOW INCLUDES | Brushed Motor/Gearbox with long prop shaft |
| GWS 4530 Prop and rubber prop adapter | |
| SHEET PARTS | 2mm laser cut Depron Airframe sheet |
| 1mm printed & laser cut Depron fuselage sheet | |
| 1mm printed & laser cut Depron flight surfaces sheet | |
| 200 micron printed & laser cut polypropylene sheet | |
| polyester sticker sheet | |
| 0.8mm plywood parts sheet | |
| LOOSE PARTS | Two 30mm Ø neoprene rubber tires |
| Vacuum formed scale cowl | |
| 10mm brass sleeve for rotary engine | |
| Two 4mm Ø noedymium magnets | |
| 100mm x 6mm Ø plastic tube | |
| 200mm x 5mm Ø plastic tube | |
| 1mm x 0.4mm carbon fibre strip | |
| 1mm Ø carbon fibre rod | |
| Rigging wire | |
| pre-shaped piano wire elevator & rudder control rods |
Spares & Accessories
For building and finishing your Microaces Aero Kit see our Spares & Accessories page
Assembly Guide
